EnglishThe working principle of the common rail test bench: the displacement sensor measures the oil volume.

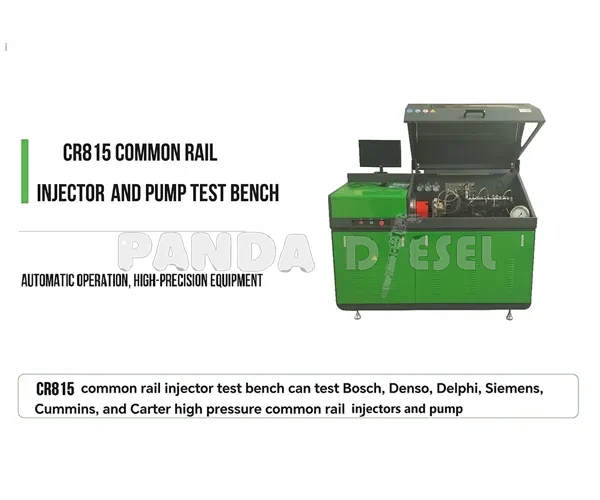

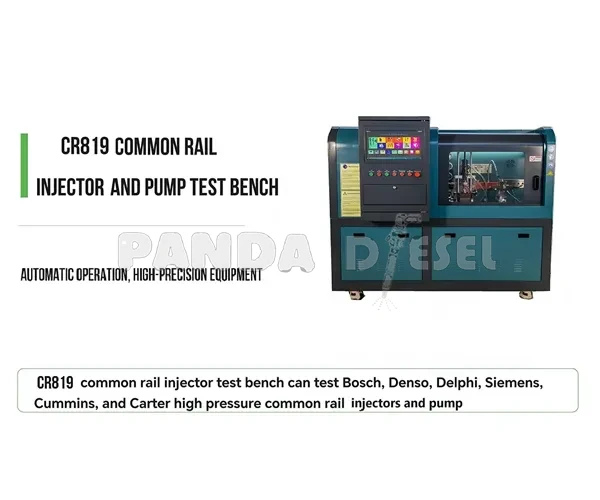

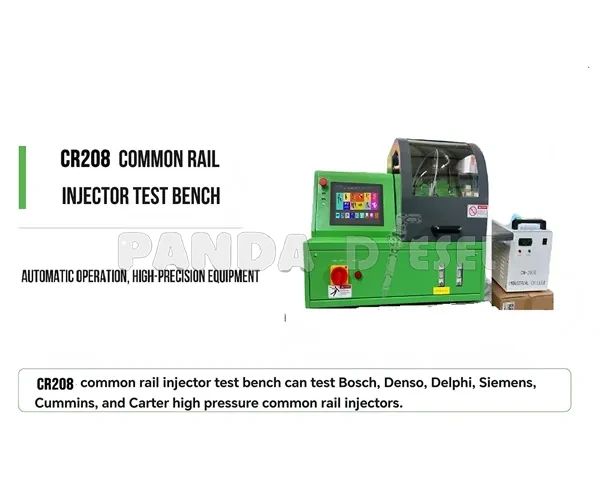

Panda Diesel from China supplies a wide range of common rail test benches designed for testing diesel injectors and fuel pumps from major brands such as BOSCH, Denso, Delphi, Siemens, Cummins, CAT, Volvo, Scania, and VW. The lineup includes compact models like the CR105 and CR208, advanced multi-functional units such as CR815, CR819, CR1018, and CR918 PRO, and high-capacity systems like the DCI 800 for simultaneous multi-injector testing. Options include glass tube measurement, dual-screen interfaces, CP3 pump configurations, EUI/EUP/HEUI capabilities, and independent pump test workspaces. These test benches support comprehensive diagnostics, coding, and performance testing for both common rail injectors and pumps.
The working principle of the common rail test bench: the displacement sensor measures the oil volume.
The equipment completely simulates the internal structure of the real engine
The equipment consists of a test bench body, control system, working area, metering system, oil supply system, cooling systerm and other test accessories.
1. Basic model 18.5KW-22KW 380v 3-phase, optional 220V 3 phase or 220v single phase
2. Test all kinds of common rail injectors
3. Test all kinds of Piezo injectors
4. Test all kinds of common rail pumps
5. Test all kinds of EUI/EUP with BIP functions
6. Test all kinds of HEUI injectors
7. Test all kinds of HEUI actuation pumps
8. Test the CAT 320D pump
9. Test Denso HP0 pump
10. The highest rail pressure is 2700 bar
11. Delphi Bosch Denso Siemens injector code
12. EUI EUP with cambox (20 pcs adapters)
13. HEUI (oil + diesel dual oil road): CAT C7 C9, CAT 3126B
14. Bosch CRIN4 (4 pin) injector testing
1. HEUI injectors testing: ISUZU, CAT 3126A, CAT 3412E, RORD G2.8, NAVISTAR, RORD G2.9
2. Cummins PT injector testing
3. Cummins PT pump testing
4. HPI Cummins X15 Q60 injector testing
5. VP37 pump testing
6. VP44 pump testing
7. RED4 pump testing
8. DENSO V3 V4 V5 pump testing
9. Euro2 mechanical pump testing
10. Testing 2/4/6 pcs at the same time
11. Testing 2/4/6 pcs one by one
