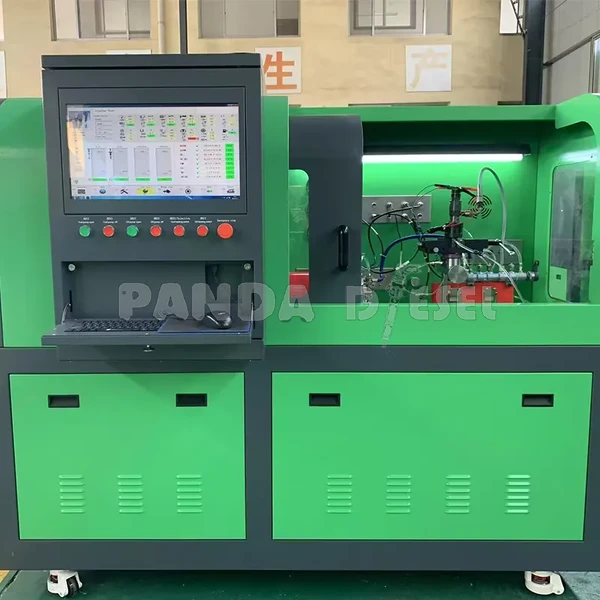

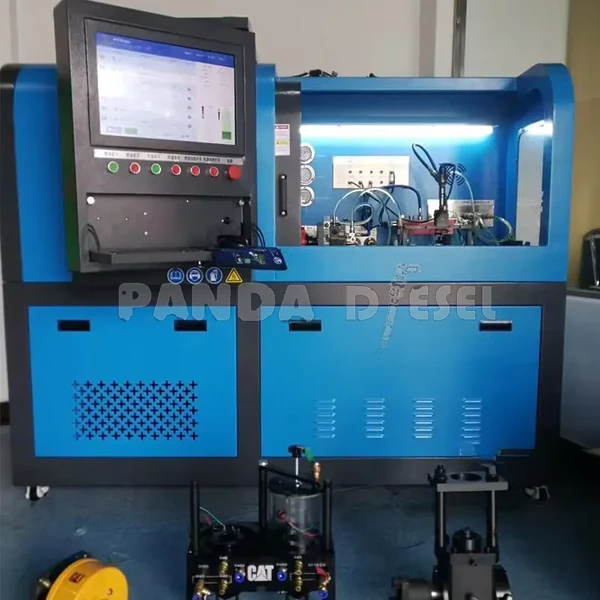

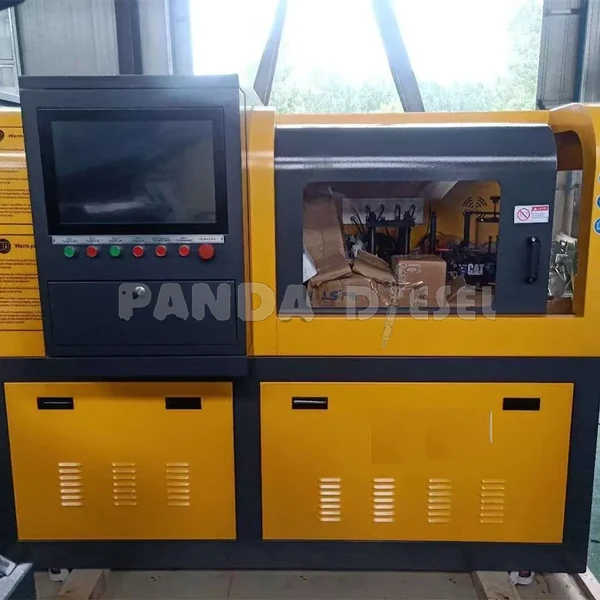

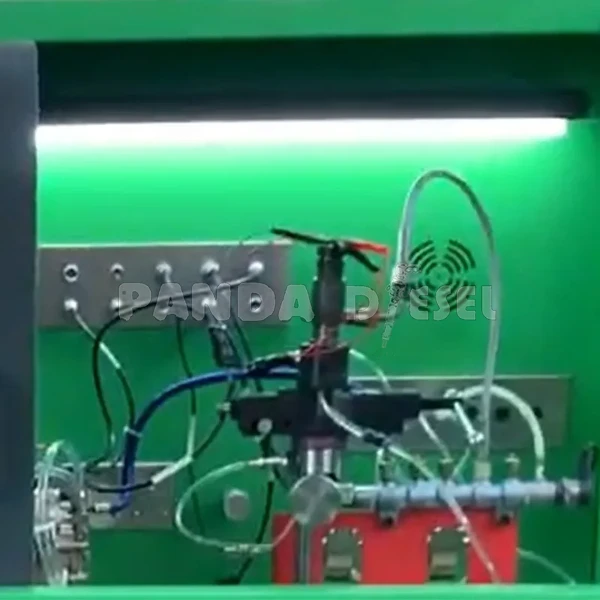

CR819 Multifunctional Diesel Injector and Pump Test Bench

  • Model Number: CR819

  • Power Supply: 220VAC/380VAC

  • Phase: Single Phase/Three Phases

  • Power: 11KW

  • Main tank capacity: 40 litres

  • Rail pressure test range: 0-2700

  • Speed: 0-4000 revolutions

  • Dimension: 191x113x156cm

  • Weight: 850kgs

CR819 Multifunctional Diesel Injector and Pump Test Bench
CR819 Multifunctional Diesel Injector and Pump Test Bench
CR819 Multifunctional Diesel Injector and Pump Test Bench
CR819 Multifunctional Diesel Injector and Pump Test Bench
CR819 Multifunctional Diesel Injector and Pump Test Bench
CR819 Multifunctional Diesel Injector and Pump Test Bench
CR819 Multifunctional Diesel Injector and Pump Test Bench
CR819 Multifunctional Diesel Injector and Pump Test Bench

Features of CR819 Multifunctional Diesel Injector and Pump Test Bench

  1. Automatic detection of various injectors and fuel pumps such as Bosch, DENSO, Delphi, CAT, etc. EUI EUP HEUI HEUP, to achieve a multi-purpose machine, effectively save testing costs.

  2. Adopt the high quality, and the test data is accurate. The test data are closely related to the original Bosch data collected by professionals.

  3. Support the generation of the Bosch IQA code and Cummins XPI QR code. Denso QR code, Delphi QR code, Siemens QR code.

  4. Fuel injector response time test. Support the fuel injector armature lift test.

  5. The server updates system data online in real time.

  6. Optional industrial forced cooling system. (Optional)

  7. High equipment reliability and trouble-free operation throughout the year.


Functions of CR819 Multifunctional Diesel Injector and Pump Test Bench

  1. Test common rail injectors, piezo injectors, BOSCH, DENSO, DELPHI, SIMMENS, CAT CUMMINS and piezo, etc. (2pins 4pins 6pins)

  2. Test Common rail pump, BOSCH CP1/CP2/CP3/CP4, CAT 320D pump

  3. Test Denso HP0/HP6/HP7 pump

  4. Open Data management. The user can add injector data

  5. Delphi Bosch Denso Siemens injector coding function

  6. AHE injector dynamic stroke

  7. Injector, resistance, inductance or capacitance value measurement

  8. Injector atomization and opening pressure test

  9. BlP function (injector response time)

  10. Common rail pump parts testing (ZME DRV)

  11. Windows system, update online, Remote technical support

  12. Support Russian, Spanish, Portuguese, English, Chinese, Thai, Polish, Indonesian and other languages, and new languages can be added


Optional Functions of CR819 Multifunctional Diesel Injector and Pump Test Bench

  1. HEULC7 C9 C-9 3126 JNJECTOR TEST:

  2. HEUI 3412 ISUZU TEST: G3116

  3. Ford0 iniector Carter 3408

  4. HEUl actuation pump

  5. EUI EUP WITH NEW CAMBOX(20 ADAPTOR )

  6. Cummins HPI Cummins X15 Q60 injector testing

  7. PT injector testing

  8. PT pump testing

  9. injector 4 injectors test at same time
