Model: CR1016 CRI CRP EUI EUP HEUI
Color: Green/Blue
Net Dimensions: 105*85*175
Gross Dimensions: 115*95*195
Net Weight: 400KG
Frequency: 50Hz /60HZ
Motor Power: 7.5kw
Voltage: 220V AC/380V AC
Tank Volume: 40L
Max Rail Pressure: 2700 Bar
Oil Temp Control: 40 ± 2°C

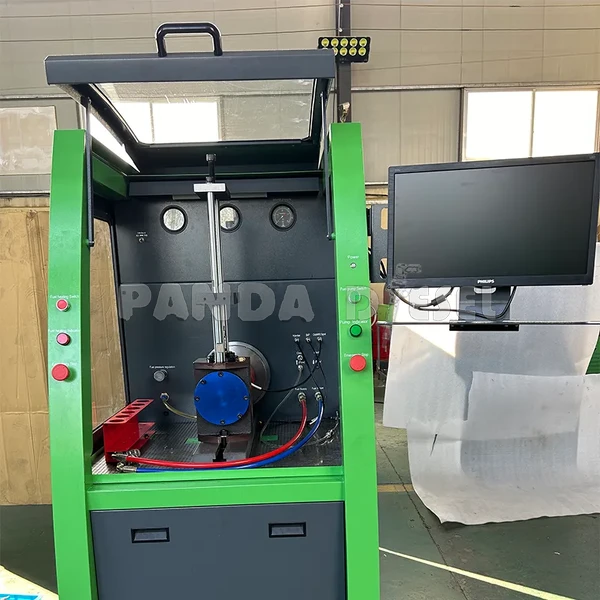

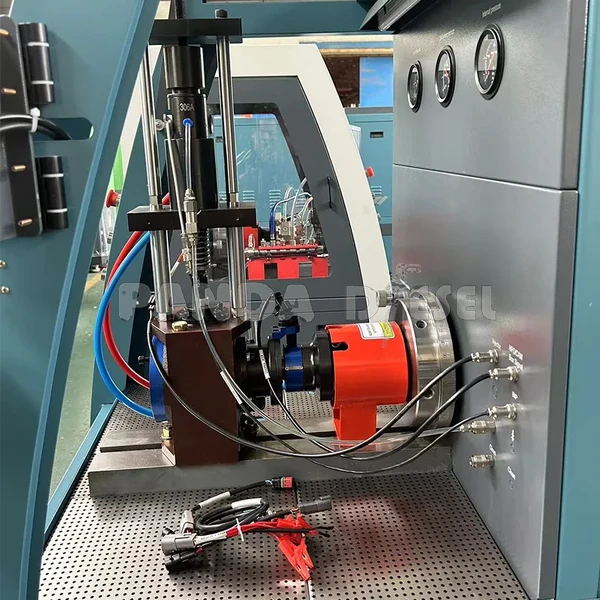

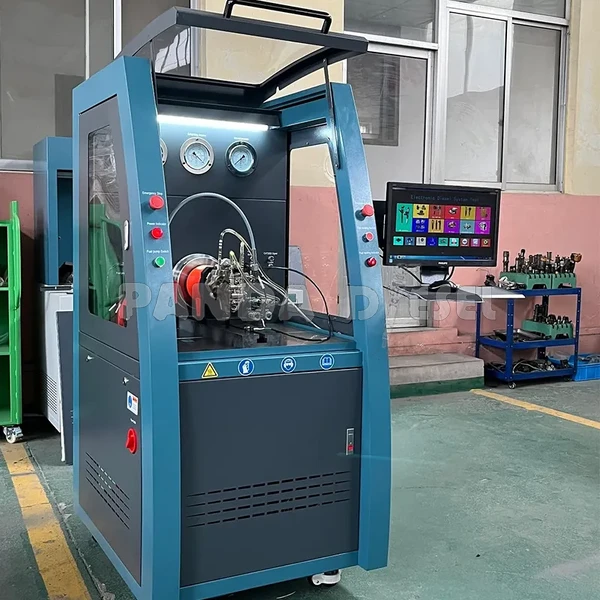

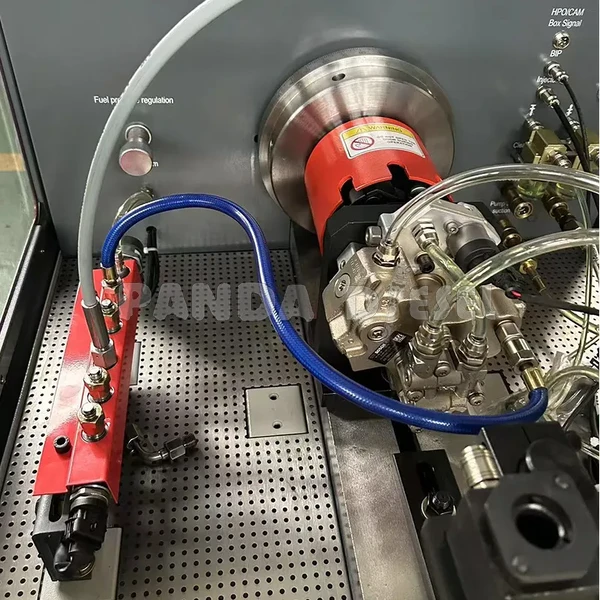

The CR1016 test bench can test Bosch, Denso, Delphi, Siemens, Cummins, CAT injectors for common rail EUI EUP HEUI.
1. Can test Common Rail injectors from Bosch, Denso, Delphi, VDO, Cummins, etc.
2. Simultaneous Test of Fuel Injection, Fuel Return, and Response Time
3. Solenoid Valve Resistance Test, Piezo Injector Resistance and Capacitance
4. Test Automatic Temperature Control System for Test Fluid
5. AHE Dynamic Armature Stroke Test
6. Coding for Bosch, Denso, Delphi, VDO, Cummins CRl, Fuel Correction Coding for CRl
7. Test all kinds of common rail pumps
8. Test all kinds of EUI/EUP with BIP functions
9. Test all kinds of HEUI injectors
10. Test all kinds of HEUI actuation pumps
11. Test the CAT 320D pump
12. Test Denso HP0 pump
13. The highest rail pressure is 2700 bar
14. EUI EUP with gear scale cam box 20pcs
15. HEUI (oil + diesel dual oil circuit, conjoined gripper)
