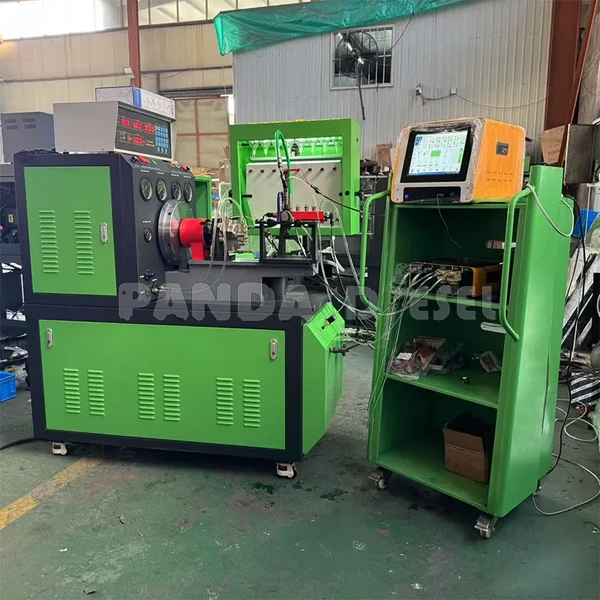

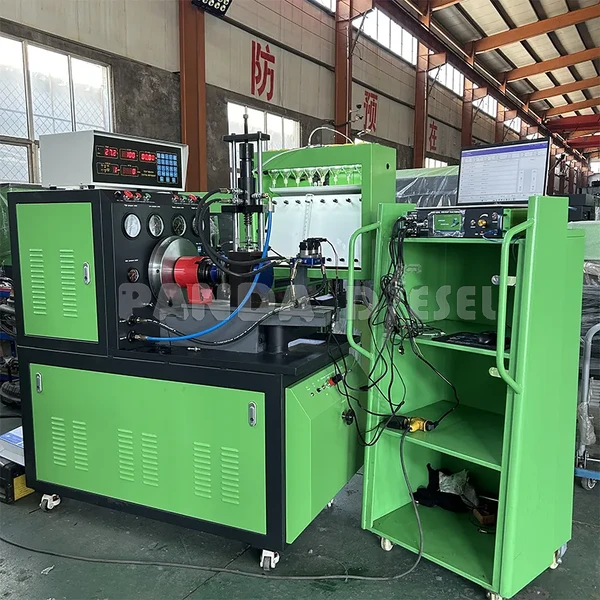

12PSB Diesel Injection Test Bench

Features of 12PSB Diesel Injection Test Bench

12PSB series diesel fuel injection test machine is designed according to customer requirements. This series of test benches adopts high-quality frequency conversion devices, with the characteristics of high reliability, ultra-low noise, energy saving, high output torque, perfect automatic protection function, and simple operation. This is a high-quality and affordable product in our business.

1. Change the frequency to change the speed

2. The speed is reduced and the output torque is large

3. High measurement accuracy;

4. Overvoltage, overload and short circuit protection functions;

5. Ten-shift speed preset;

6. Constant temperature control;

7. Ultra-low noise;

8. Operation position: Any side of the two working sides of the test bench;

9. Built-in air resources;

10. The speed, count, temperature, air pressure, and advance angle are measured and controlled by the computer in real time.

Functions of 12PSB Diesel Injection Test Bench

1. Measure the delivery of each cylinder at any speed.

2. Test points and interval angles of fuel injection pump supply.

3. Check and adjust mechanical speed regulator.

4. Check and adjust distribution pump.

5. Experiment and adjustment of boost compensation device performance.

6. Measurement of distribution pump return oil volume

7. Test of distribution pump solenoid valve. (12V/24V)

8. Measurement of internal pressure of distribution pump.

9. Check the sealing of injection pump body

10. Install automatic oil suction pipe to check the fuel supply pump (including ve pump).

11. TRAVEL OF TOOTH BAR(optional)

12. OIL LUBRICATE(optional)

13. FORCED COLLING(optional)

14. ADVANCE ANGLE(optional)

15. USD150(WITH ADATORS)(optional)

16. Work with EUS1600 tester for cambox EUI EUP testing

17. Work with VC200 tester for testing Common rail EUI EUP HEUI
