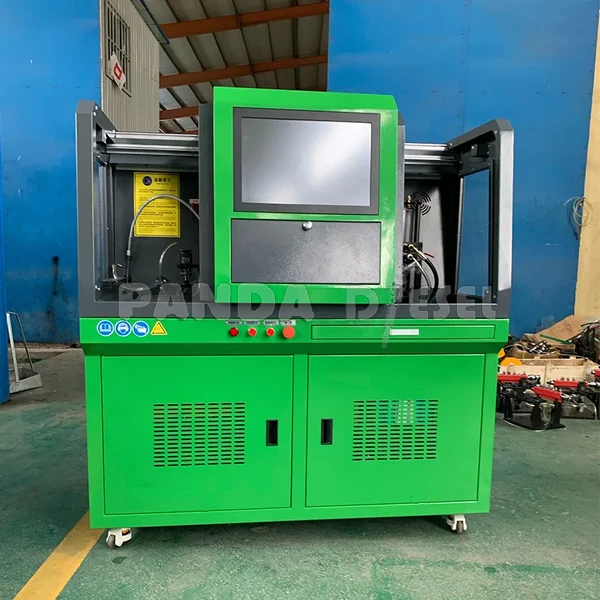

CR618 Common Rail & HEUI Injector Test Bench

  • Model: CR618

  • Color: green

  • Net dimensions: 1420x900x1540mm

  • Gross dimensions: 1460x920x1560mm

  • Net weight: 500kgs

  • Frequency: 50hz/60hz

  • Motor power: 5,5kw

  • Heui motor p: 2.2kw

  • Voltage: 220v ac/380v ac

  • Tank volume: 15L+30L

  • Max rail pressure: 2700 bar

  • Oil temp control: 40± 2°C


CR618 Common Rail & HEUI Injector Test Bench
CR618 Common Rail & HEUI Injector Test Bench
CR618 Common Rail & HEUI Injector Test Bench
CR618 Common Rail & HEUI Injector Test Bench
CR618 Common Rail & HEUI Injector Test Bench
CR618 Common Rail & HEUI Injector Test Bench

Features of CR618 Common Rail & HEUI Injector Test Bench

  1. Automatically test Bosch, Denso, Delphi, Cummins, Scania, Caterpillar, German MTU and other common rail injectors. Equipped with HEUI injector assembly

  2. to test CAT HEUI CATC7 C9 3126 injectors. Two systems work independently without disassembly. Integrated oil radial piston pump and high pressure common rail fuel pump,reducing the frequency of parts replacement and improving maintenance efficiency.

  3. Innovative dual operation room design, both the computer and the operating room can be pushed and pulled


Functions of CR618 Common Rail & HEUI Injector Test Bench

  1. Test injector brands: Bosch, Siemens, Delphi, Denso, CAT 320D injector, Cummins XPI/ISG injector, piezo injector,Bosch CRIN4 injector.

  2. Test 1 injector at a time

  3. Test the leakage performance of common rail injectors.

  4. Test the pre-injection of common rail injectors.

  5. Test the full-load oil volume of common rail injectors.

  6. Test the medium-speed oil volume of common rail injectors.

  7. Test the return oil volume of common rail injectors.

  8. Test the idle working oil volume of the common rail injector

  9. Data can be searched and saved

  10. Injector BIP test

  11. Bosch/Denso/Delphi/Siemens/Cummins XPI injector QR code generation

  12. Injector inductance test

  13. Bosch CRIN4 (4-pin) injector test

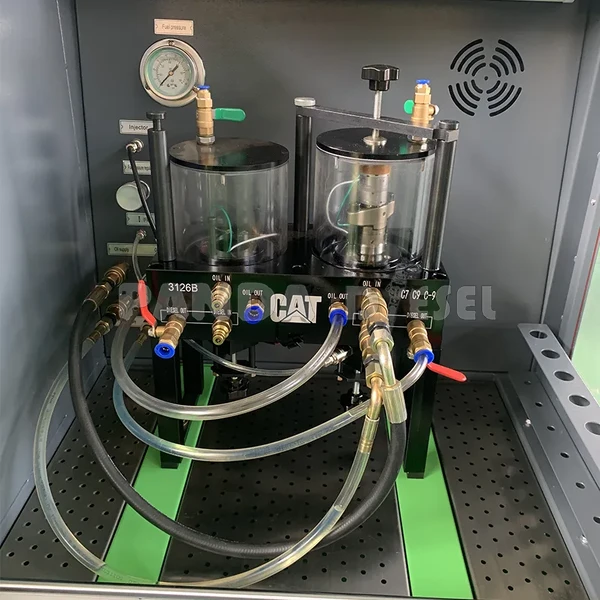

CAT HEUI injector function of CR618 Common Rail & HEUI Injector Test Bench

  1. Test HEUI injector brand: C7/C9/C-9/3126B injector,

  2. ISUZU,CAT 3126A,CAT 3412E,RORD G8,NAVISTAR,RORD G9L (optional)

  3. Test 1 piece of HEUI injector at a time

  4. Test the leakage performance of HEUI injector.

  5. Test the pre-injection of HEUI injector.

  6. Test the full load oil volume of HEUI injector.

  7. Test the medium speed oil volume of HEUI injector.

  8. Test the idle working oil volume of HEUI injector

  9. Test the engine return oil volume of HEUI injector

  10. Data can be searched and saved
