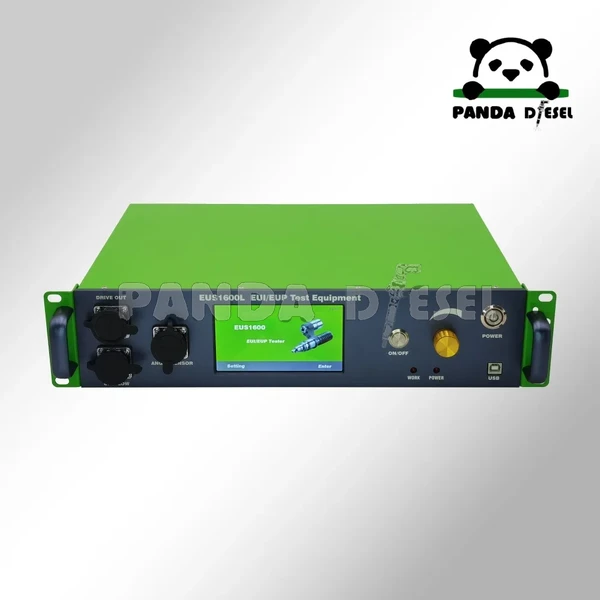

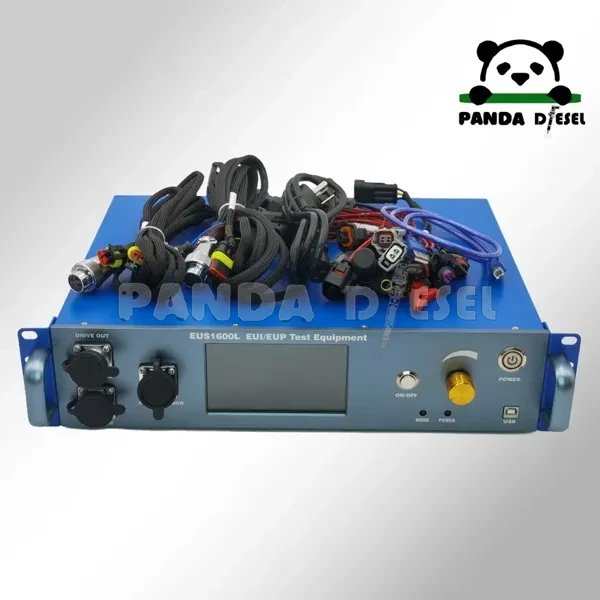

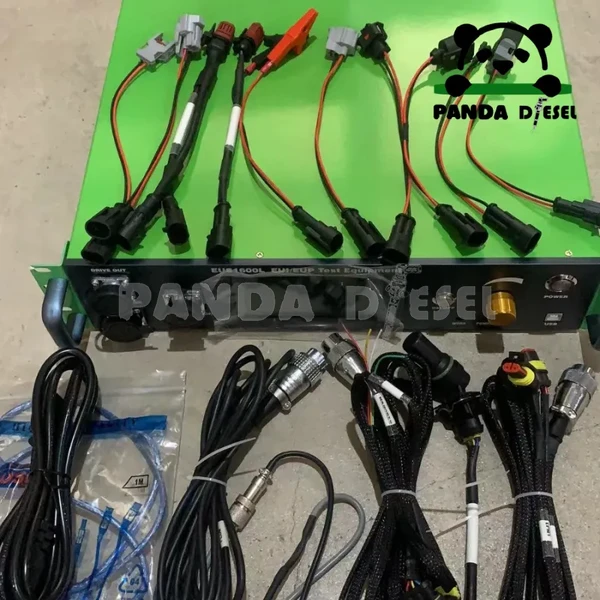

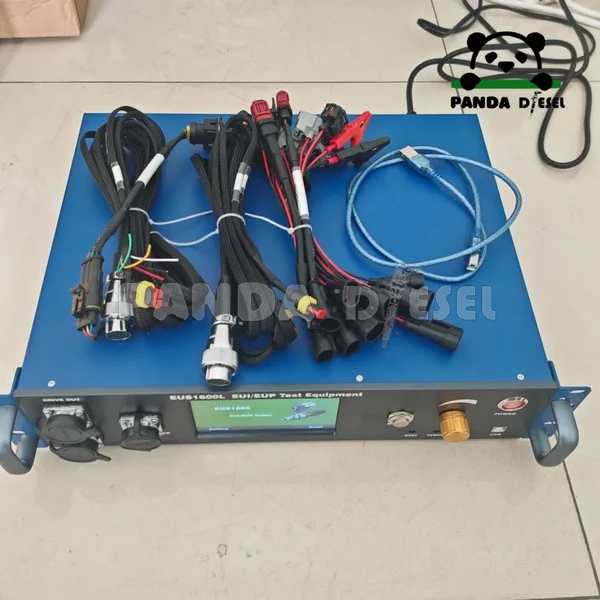

EUS1600 EUI EUP Tester

• Supports a variety of cam boxes

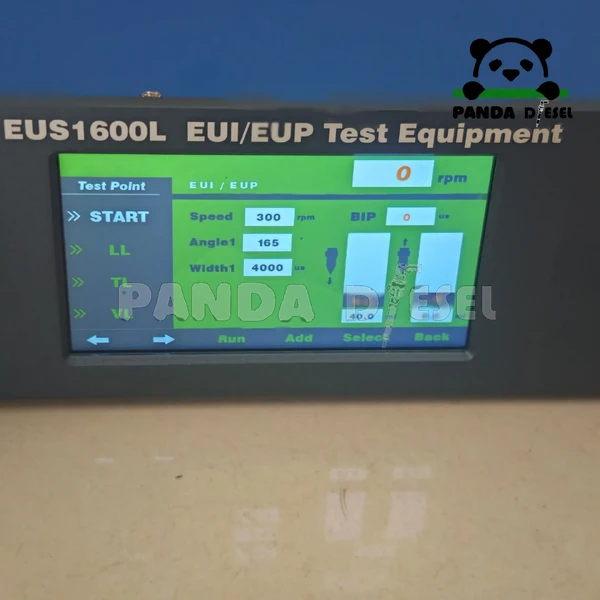

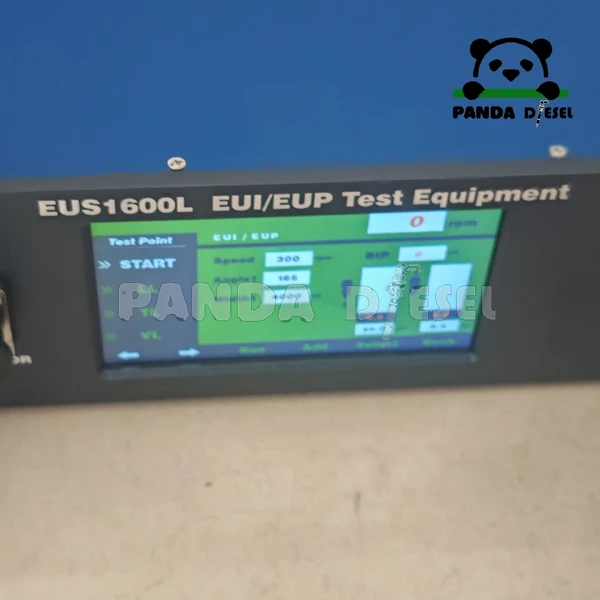

• Comes with a 5" LCD screen

• Can be used via USB connection

• PC software

• Support various EUl/EUP tests

Functions of EUS1600 EUI EUP Tester

Function introduction:  EUS1600 can be connected to a laptop for testing,   It can also be operated with its own touch screen.

1. Support all types of EUI/EUP tests (test plan can be added and edited)  (Including electromagnetic, piezoelectric, double pulse M11,  double solenoid valve dephi E3，HPI X15,QSK60)

2. Support hall, magnetoelectric, encoder cam signal input;

3. Support BiP signal input and display (need BiP sensor and adapter);

4. Support flow sensor signal input and display;

5. Injector resistance, inductance or capacitance can be measured   (standard data can be added);

6. It can drive an electromagnetic injector or a piezoelectric injector,   (Built-in more than 3,500 standard data);

7. IQA coding of common rail injector can be generated (optional).

8. Support common rail injector opening pressure/opening pulse width test,  single injection test;

9. Support AHE lift test of common rail injector;

10. It can drive CAT HEUI injector (built-in test plan);

11. The drive current and voltage of the injector are settable;

12. The drive waveform can be displayed  (the same as the waveform measured by the oscilloscope);

13. More than a dozen language interfaces are available;

14. It can be remotely assisted on the Internet and  can be upgraded with one key;

15. Standard 2U chassis design, high-grade aluminum alloy panel,  with fixed ears, easy to fix to the cabinet;
