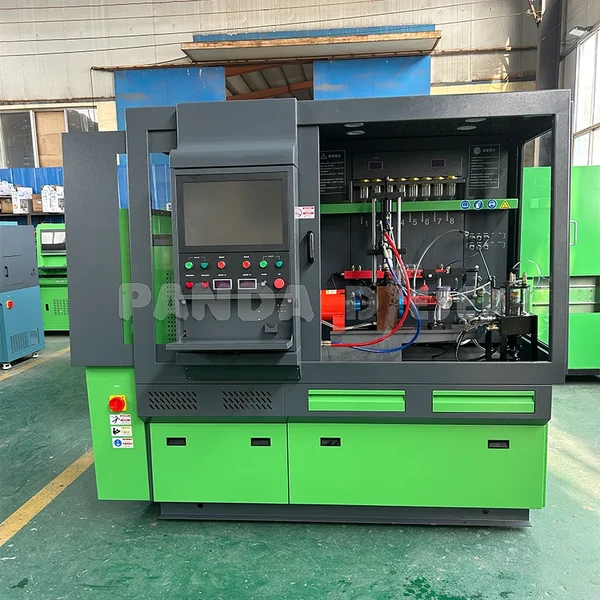

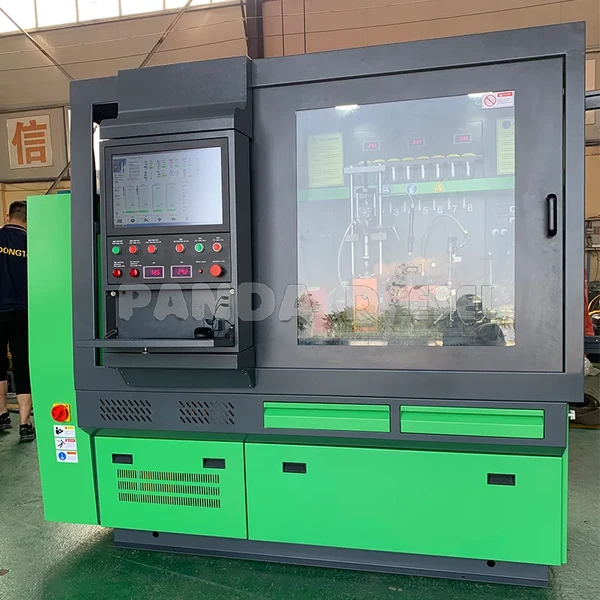

CR918 Multifunctional Diesel Injector and Pump Test Bench

Features of CR918 Multifunctional Diesel Injector and Pump Test Bench

1. Three systems work independently without disassembly (independent testing for common rail injector, EUI EUP with cambox, HEUI pump);

2. Original-level precise response time (all high speed, medium speed and idle speed can be tested);

3. Standard CAT HEUI and pump testing, oil pressure height standard, high accuracy and reliable;

4. Adopting high quality flow sensor, the test is accurate, and the test data is strictly tested and summarized by professional technicians and is highly close to Bosch original data.

5. Bosch IQA code generation, Cummins XPI QR code generation. Denso QR code generation, Delphi QR code generation, Siemens QR code generation

6. Injector response time test

7. Injector armature stroke lift test.

8. Solenoid valve resistance test

9. Solenoid valve inductance test

10. Open pulse width test

11. Open pressure test

12. The server supports remote upgrades in real time online, and can continue to download according to the previous download progress.

13. The whole machine is equipped with industrial air conditioning refrigeration as standard, and it runs 24 hours a day.

14. The equipment has high reliability and runs without failure all year round.

15. Hardware programs (computer board programs/driver board programs) can be flashed.

Technical Parameters of CR918 Multifunctional Diesel Injector and Pump Test Bench

Functions of CR918 Multifunctional Diesel Injector and Pump Test Bench

1. Basic model 18.5KW-22KW 380v 3-phase ,optional 220V 3 phase or 220v single phase

2. Test all kinds of common rail injectors

3. Test all kinds of Piezo injectors

4. Test all kinds of common rail pumps 5

5. Test all kinds of EUI/EUP with BIP functions

6. Test all kinds of HEUI injectors 7

7. Test all kinds of HEUI actuation pumps

8. Test CAT 320D pump

9. Test Denso HP0 pump

10. The highest rail pressure is 2700 bar

11. Delphi Bosch Denso Siemens injector code

12. EUI EUP with cambox (20pcs adators)

13. HEUI (oil + diesel dual oil road):CAT C7 C9,CAT 3126B

14. BoschCRIN4(4 pin) injector testing

Optional functions of CR918 Multifunctional Diesel Injector and Pump Test Bench

1. HEUI injectors testing:ISUZU,CAT 3126A,CAT 3412E,RORD G8,NAVISTAR,RORD G9,

2. Cummins PT injector testing

3. Cummins PT pump testing :

4. HPI Cummins X15 Q60 injector testing

5. VP37 pump testing

6. VP44 pump testing

7. RED4 pump testing

8. DENSO V3 V4 V5 pump testing

9. Euro2 mechanical pump testing

10. Testing 2/4/6 pcs at the same time:

11. testing 2/4/6 pcs one by one
