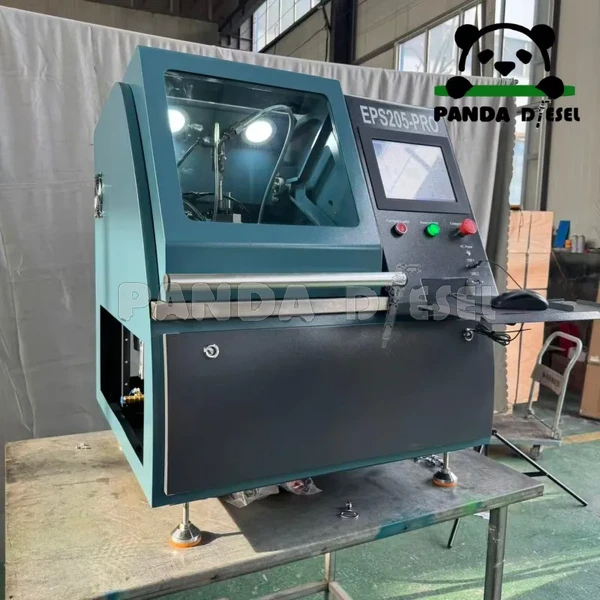

High precision eps 205 pro diesel common rail fuel injector test bench

The EPS205-PRO high-pressure common rail test bench imitates diesel engine ECU (Engine Control Unit), and provides common rail system control signals (CP1/CP2/ CP3/ HP3/ HP4/ DELPHI), such as Bosch, Denso, Delphi, and Siemens, to drive high-pressure common rail. The oil pump and the high-pressure common rail injector are working, and the driving signal parameters can be set by the user

according to their actual conditions, and can be grouped and saved, which is convenient for maintenance personnel to judge and repair the working state of the high-pressure common rail system.

Model Number:EPS205-PRO

Power Supply:220V AC
Phase:Single Phase

Power:2.6KW

Main tank capacity:23 litres

Common rail pump type: CP3
Dimension: 860X775 X940

(1) Motor speed: 0～3000rpm; oil pump speed: 0--1500rpm
(2) Working pressure: 0-200MPa
